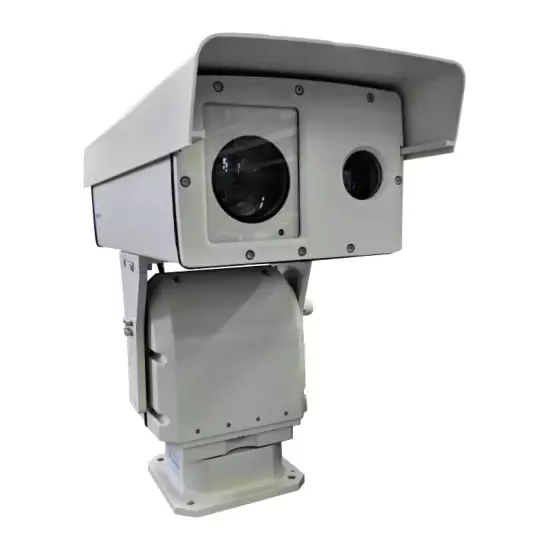

1km Night Vision Long Distance Laser CCTV Camera

Model NO. shr-hlv1020 Sensor CCD HDMI Format 480P Horizontal Resolution 600tvl Kind Manual Focus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 1000m Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin China Production Capacity 200 PCS/Month

Product Description

1  Product features   -Adopt laser illuminating system, long lighting distance with large scope, uneasy  to be discovered;   -Day & Night low illumination megapixels color to black camera, realize  continuous monitoring day and night;   -Auto exposal control, AWB, AGC;   -High-efficiency video processing chips, H.264 code, HD images  of millions resolution;   -Dual-stream function to meet the different network broadband;   -Rich network protocol, good adaptability;   -Mobile surveillance and alarm linkage, intelligence video monitoring;   -Built-in Web Server, convenient to control;   -Shifting pan-tilt, realize all directions no blind spot monitoring and high accurate  orientation;   -Smart shell with professional design, light, firm, anti-corrosion,  waterproof and acid rain proof.     2 Technical indicators   Monitoring distanceNight vision1000metersDay vision2000metersImaging lensFocal length10~320mmFOV1.2°~36.8°Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding mode   H.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower8WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°SpeedHorizontal 0.1°~9°/s,pitching 0.1°~4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤80WPhysical featuresWeight25kgInstallation methodoutdoor pedestal mounting   3 Main use   -Oil fields, Railways, Airports, harbors, engineering constructions, forests fireproofing and reconnaissance, Large areas/ invisible real-time monitoring   -Frontier and coast defense, national defense, Night campaign   4 Factory Tour
