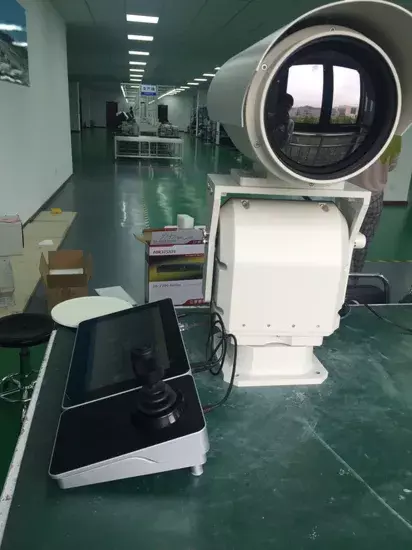

9900m Waterproof 5X Optical Zoom Thermal Camera

Model NO. TIR155R Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 9900m Sensor Size 1/3 inch Remote Control With Remote Control Weight 4kg Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

13 years on long range thermal imaging & laser camera CZVZ would like to provide customization service for your special requirement. Product Features 1) 324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox 2) 25µm super small pixel,image quality fine,observe small target more clearly,further detection distance 3) High sensitivity, NETD can reach 50mk and frame at 25Hz 4) Word originate 25~100mm continuous zooming,can search in a wide range as well as identify target far,don't lost target 5) Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color 6) Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7) RS 485 interface control, analog video signal output 8) Simple operation,easy to use and maintain 9) Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime Specification Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance3600m9900mRecognize distance900m2470mIdentification distance450m1200mThermal lensFocal length30~150mm,5x optical zoomFOV3.1°×2.4°~15.2°×12.2°F1.2Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25μmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤5KgSize400mm×202mm×200mm(L×W×H,contain sunshield cover)InstallationOutdoor base install CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world.
