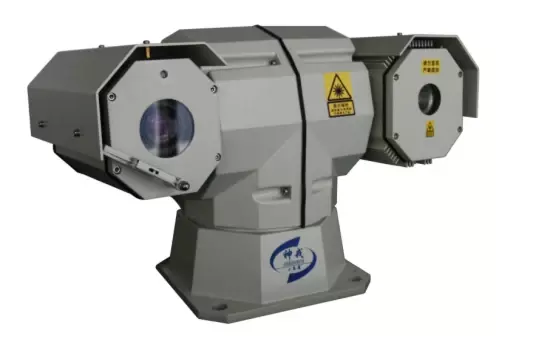

Car-Mounted Full HD IP CCTV Laser Night Vision Camera

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 800m Night Vision, 1000m Daytime Vision Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 800m Daytime Vision Distance 1000m Pixel 2.1 Mega Pixel Focal Length 4.7-94mm International Protection IP66 Weight 8kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 54.00cm * 50.00cm * 36.00cm Package Gross Weight 20.000kg

Product Description

1 Product features -Adopt laser illuminating system, long lighting distance with large scope,  uneasy to be discovered; -Day & Night low illumination megapixels color to black camera, realize  continuous monitoring day and night; -18x optical zooming, auto exposal control, AWB, AGC; -High-efficiency video processing chips, H.264 code, HD images of millions  resolution; -Dual-stream function to meet the different network broadband; -Rich network protocol, good adaptability; -Mobile surveillance and alarm linkage, intelligence video monitoring; -Built-in Web Server, convenient to control; -Shifting pan-tilt, realize all directions no blind spot monitoring and  high accurate orientation; -Smart shell with professional design, light, firm, anti-corrosion, waterproof  and acid rain proof.   2 Technical indicators Monitoring distance 800m at night 1000m in the daytime Day light camera Sensor 1 / 2.8" progressive scan CMOS Pixel 2.1 mega pixel Focal length 4.5-135mm, 30x optical zoom Aperture value F1.6-4.4 Camera control AGC,AWB, Automatic Backlight Compensation, Supports manual and automatic day and night mode switching Minimum illumination 0.05Lux(color), 0.01Lux(black and white) Video code Format H.264 Video resolution 1920 * 1080 Bitrate and frame rate Bitrate: 64Kbps-4Mbps, frame rate: 1-25fps(50Hz), 1-30fps(60Hz) Laser illuminator Power 5W Wavelength 810nm Illuminating angle 1°-20°, synchronous continuous adjustment Even light MCIC even light technology Pan-tilt Speed Pan speed 0-80°/s, tilt speed 0-60°/s Angle Pan 360°, tilt +90° to -90° Presets Maximum 220 Cruising paths 16 cruising paths Interface Power supply interface DC24V socket, for external power adapter Internet  interface 1 x 10Base-T / 100Base-TX, RJ45 interface Environmental indicators Operating temperature -25ºC to +55ºC (optional -40ºC to +55ºC) Storage temperature -40ºC to +65ºC International protection IP 66 Shakeproof 10-55Hz, 2m/S2, 0.75mm; Anti-impact 150m/S2, 11ms Anti-salt fog 48 hours spraying continuously under PH 6.5-7.2 Power Working power supply DC24V, please use the enclosed power equipment Power consumption 60W Physical features Weight 8kg Size 240 * 374 * 243mm Effect Demo Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
