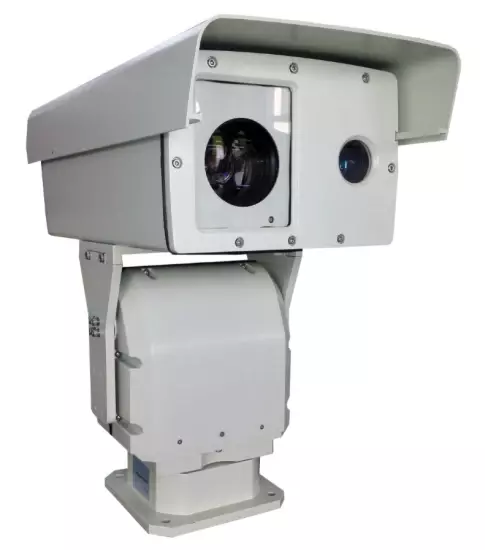

Long Range PTZ Camera Laser (HLV1020)

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Monitoring Distance 1km at Night, 2km at Daytime Imaging Lens 10~320mm Auto Focusing Support See Through Fog Function Support Camera HD IP Camera Laser Illuminator 60* Zooming Laser Telephoto Lens Transport Package Standard Exporting Package Specification CE, FCC Trademark CZVZ Origin China Production Capacity 500PCS/Month

Product Description

Product Features 1.Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black 2.Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring 3.MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition 4.Supporting fog penetration, backlight compensation, multistage wide dynamic 5.Optional auto focusing function, realizing multiple focusing mode and triggering mode 6.Supporting camera back focal length fine adjustment technology and camera remote debugging 7.Supporting long focal length speed limit and 3D locating function 8.Abundant network protocol and good network applicability, adapting all kinds of network environment 9.External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment  10.Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Monitoring distance Night vision 1000meters Day vision 2000meters Imaging lens Focal length 10~320mm FOV 1.2°~36.8° Auto focusing supporting(optional) Fog penetration supporting(optional) Camera Sensor type 1/1.8"Progressive Scan CMOS Coding mode   H.264/MPEG4/MJPEG Video resolution 1080P,CIF,supporting three stream Video bit rate 32Kbps~16Mbps Video frame rate 1~25F/S(50Hz),1~30F/S(60Hz) Illuminator Illuminating lens 60* zooming laser telephoto lens Power 8W Wave length 810nm Illuminating angle 0.5°~30°continuous changing Light  homogenization multi-tube core fusion mixed mode light homogenization technology Shield Material Precise casting aluminum alloy Window glass 4mm crystallite super white optical glass Pan-tilt Carrying capacity 22kg(top load) Angle Horizontal 360°continuous rotation,pitching -60°~+20° Speed Horizontal 0.1°~9°/s,pitching 0.1°~4°/s Preset bits 255 bits,supporting lens zooming and focusing memory,8 cruising paths Auto cruising 8 paths,10 preset bits each path Anti-lightning 2000V Interface Power supply interface AC24V Network interface 1×10Base-T/100Base-TX,RJ45 Environment indicators Working temp -25ºC~+55ºC Storage temp -40ºC~+65ºC Protection grade IP66 Power supply Whole machine power supply AC24V±10%,appendant AC220V~AC24V/5A water proof power supply Whole machine power consumption ≤80W Physical features Weight 25kg Installation method outdoor pedestal mounting
